This page contains the instructions to replace the running board and / or belt for the NoblePro Elite E8 Series V1 and V2 treadmills.
WARNING: Mains voltage can be dangerous. Ensure the needed safety precautions are taken before undertaking these instructions.
To undertake the replacement you will need:
Turn off the treadmill by the wall and unplug the cable from the treadmill power socket and wait 20 mins for the capacitors to discharge.
For the purpose of this guide, the front of the treadmill refers to the console end. The left and right sides are described from the perspective of standing on the treadmill as if in use.

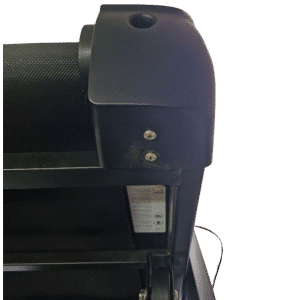

1.Remove End Caps
Remove the two screws on each of the end caps located at the rear of the treadmill. (The image shows the right-hand side.) Take off the end caps.
2. Remove Rear Deck Screws
Locate and remove the two screws underneath the deck at the rear of the treadmill (highlighted in green in the image).
3. Remove the Motor Cover
Unscrew the four screws securing the motor hood and carefully remove the cover.

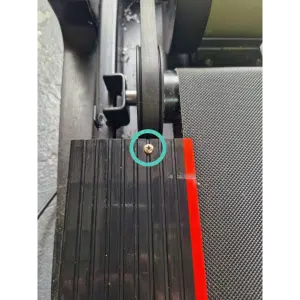

4. Detach Foot Rails (Motor End)
Remove one screw from each foot rail at the motor end.
5. Remove Foot Rails
Slide both foot rails off by pulling them toward the rear of the treadmill.

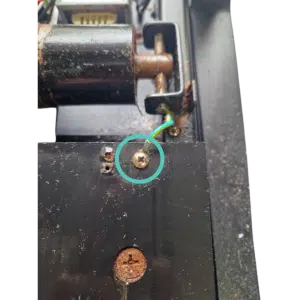

6. Remove the Earth Screw
Unscrew and remove the earth screw on the right-hand side toward the front of the treadmill
7. Remove Foot Rail Mounts
Detach the eight foot rail mounts (four on each side).
- If you are replacing only the running belt, you may skip this step.
8. Detach Board from Frame
Remove the six gold-coloured screws securing the board to the frame.
Important: Screws vary in length — note their original positions for correct reinstallation.
The two rear screws require a spanner on the bolts underneath to remove.
Once all screws are removed, carefully slide the deck out from the right-hand side.
9. Install the New Board
Fit the new board and reverse the above steps to reinstall all components.
Follow Steps 1–8 in the “Replacing the Running Board” section, skipping Step 6.

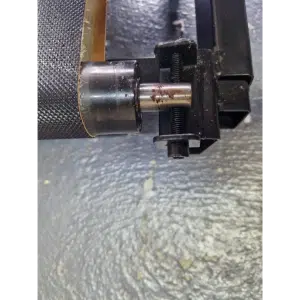

1.Remove the Rear Roller Bolt
Use an Allen key to remove the bolt on the right-hand side securing the rear roller to the frame.

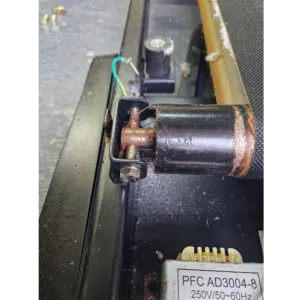

2. Remove the Front Roller Bolt
Unscrew the bolt on the right-hand side of the front roller.
3. Remove and Replace the Running Belt
The running belt will now slide out from the right-hand side.
Fit the new belt, then reinstall by following the removal steps in reverse.
4. Adjust Tension
Once the new belt is installed, follow the NoblePro guide on how to tension the running belt to ensure optimal performance.
